Isolated vehicle, uncontrolled dumping, scaffolding, isolated storage area, search for evidence, construction sites, base camp/container alarm, unoccupied properties/sites without energy, incivility/degradation, agriculture, environmental monitoring.

Totema Solar HD.jpg

VIGINOMAD RANGE ACCESSORIES

VIGINOMADandVIGINOMAD-R on trailer  is a system equipped with high-definition intelligent infrared sensor, siren, intelligent wireless 2G/3G/4G gateway, powered by long-lasting battery, which monitors the environment and makes decisions regarding possible threats.

Chargeur-de-batteries-12-baies-Viginomad
Boulon-hexagonal-de-sécurité-viginomad-2
Boulon-hexagonal-de-sécurité-viginomad.p
Outil-d'écrou-de-sécurité-viginomad-2.pn
Chargeur-de-batteries-4-baies-Viginomad.

VIGINOMAD RANGE ACCESSORIES


Solar panel

Solar charging of batteries in a detector, bridge or siren to increase autonomous operating time. Requires one charging battery per unit.

Pack-d'extension-de-batterie-reconeyez.j

Battery extension pack

An additional power supply for a detector, bridge or siren to double the autonomous operation time. Requires one charging battery per unit.


Mains charger

Allows a detector, bridge or siren to operate and charge the batteries from the mains. Requires one charging battery per unit.


Demo kit

A rugged carrying case that fits a complete Reconeyez demo system.


12 bay charger

Mains charger for simultaneously charging up to twelve detector, bridge and siren batteries.


4 bay charger

Mains charger for simultaneously charging up to four detector, bridge and siren batteries.


The connector

Required for configuration and installation of bridge and detector. Translates the signal between a Bluetooth-enabled device and the bridge and detectors.


Battery charge

A battery to enable the use of a solar panel, battery extension pack or mains charger.


Spare battery

An additional battery for a detector, a bridge or a siren.


Mounting plate

A plate for mounting a detector, bridge or siren using cable/zip ties or screws for installation on metal, concrete and poles etc.


Screw

A TX30 head screw to mount a detector, a bridge or a siren on soft materials such as wood.


L-shaped riser

A mounting bracket to mount two units facing in opposite directions or to provide a more flexible mounting option away from a pole or wall.

SOLAR PANEL


Electrical parameters
OCV solar panel: 22.8V
Solar panel Vmp: 18.6V
Solar panel Pmax: 20V
Max charging current: 2A
Maximum battery voltage: 4.2 V
Battery NTC value: 10k

Mechanical

Dimensions of the solar panel: 43.5 x 35.5 x 2.5 cm
Cable length: 2m
Product weight (solar panel and wiring without battery): 2.3 kg

BATTERY EXPANSION PACK

The Battery Expansion Pack is used to increase the battery capacity of the detector and the Gateway.
NB! The Battery Extension Pack and the solar battery are separate elements.
2 solar batteries are required.

Electrical parameters
Capacity: 40.8Ah
Maximum battery voltage: 4.2V
Battery NTC value: 10k

Mechanical
Dimensions: 265mm x 94mm x 93mm
Cable length: 1m
Weight:
1.2 kg (kit net weight)
0.8 kg (battery extension pack without batteries)
1.5 kg (battery extension pack with 4 batteries)
0.2 kg (solar battery)


EU MAINS CHARGER

The mains charger is used to charge the detector and gateway batteries.

 NB! : The mains charger and the solar battery are separate elements

Electrical parameters
Input voltage range: 100-240 VAC, (50/60 Hz)
current load: 2A
Max voltage Battery Rating: 4.2V
Battery NTC value: 10k


Mechanical

Dimensions:
Consists of 2 components and cables
connection:
Mains adapter 150mm x 40mm x 35mm
Solar Charger 40mm x 25mm x 25mm
Cable length: 11.5m
(AC cable 1.5m and DC cable 10m)
Weight (charger with wiring without battery): 1.2 kg


CONNECTOR

The Connector is a communication device that mediates the data connection between the portable Smartphone equipped with the installation application and the devices in the field.
Thanks to the Connector, the user of the installation application can configure the parameters of the Detectors, Gateways and Sirens as well as communicate with them during the installation of the system.


Communication
Bluetooth:
bluetooth ver. 1.2
Frequency: 2402-2480Mhz
Class 1 transmitter, 15 dBM
802.15.4:
Frequency 2400-2481Mhz
3.5dBM transmitter



Battery and charging

Battery: Li-Ion 3.7V
Capacity: 1150mAh
Charging: via micro USB socket

Mechanical
Dimensions: 100mm x 32mm x 47mm
Weight: 66g

12-BAY RAPID BATTERY CHARGER

The 12x2A battery charger is used to charge Li-ion battery packs.

The charger has 12 independent charger slots and an external AC/DC adapter.

Chargeur-de-batteries-12-baies-Viginomad

Electrical parameters
AC/DC Adapter: Meanwell GST60A12-PIJ
AC/DC adapter weight: 0.9 kg
Charging current: 2A
Charging voltage: 4.2V
Charging time: 8 hours (10 Ah battery at one
ambient temperature of 25°C)
Battery NTC value: 10k


Mechanical

Dimensions: 1200mm x 450mm x 4700mm
Weight: 1.4kg

4-BAY RAPID BATTERY CHARGER

The 4x2A battery charger is used to charge Li-ion batteries.

The charger has 4 independent charger slots and an external AC/DC adapter.

Chargeur-de-batteries-4-baies-Viginomad.

Electrical parameters
AC/DC Adapter: Meanwell GST60A12-PIJ
AC/DC Adapter Weight: 0.5kg
Charging current: 2A
Charging voltage: 4.2V
Charging time: 8 hours (10 Ah battery at one
ambient temperature of 25°C)



Mechanical

Dimensions: 1200mm x 450mm x 1600mm
Weight: 0.5kg

FIXING ACCESSORIES

Mounting bracket


Mounting screws

Support-de-montage-magnétique-viginomad.

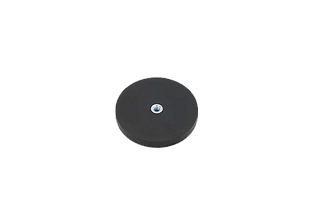

Magnetic mounting bracket

L-shaped bracket


SAFETY ACCESSORIES

security hex bolt

Boulon-hexagonal-de-sécurité-viginomad.p
Boulon-hexagonal-de-sécurité-viginomad-2

Security nut tool


Safety nut

Security nut tool

Outil-d'écrou-de-sécurité-viginomad-2.pn
